AA VW Piston & Cylinder Set, 101.6mm, Forged, VW101T1SJE, VW Bug, Ghia, Super Beetle, Bus, Type 3, Thing

AA VW Piston & Cylinder Set, 101.6mm, Forged, VW101T1SJE, VW Bug 49-77, Ghia 55-74, Super Beetle 71-79, Bus 55-71, Type 3 61-73, Thing 73-74

Enhance the performance and durability of your air-cooled Volkswagen engine with this 101.6mm forged piston and cylinder set from AA Performance Products. Engineered for high-stress applications, these forged pistons and matching cylinders provide superior strength, thermal stability, and long-lasting reliability for your engine build.

Whether you are rebuilding a classic Bug, Bus, Karmann Ghia, or Type 3 powerplant, this premium set (Part Number: VW101T1SJE) ensures precise tolerances and optimal sealing for improved power and efficiency. Trust AA Performance Products to deliver the quality components you need to keep your vintage VW running strong.

Specifications:
Piston Material: JE Forged 2618 Aluminum
Cylinder Material: Cast Iron
Piston Style: Flat Top
Stroke: B Stroke Pistons
Bore: 101.6mm or 4in
Cylinder Stud Pattern: 6 Stud
Cylinder Length: Long/Uncut for long stroke engines
Compression Height: 34.29mm

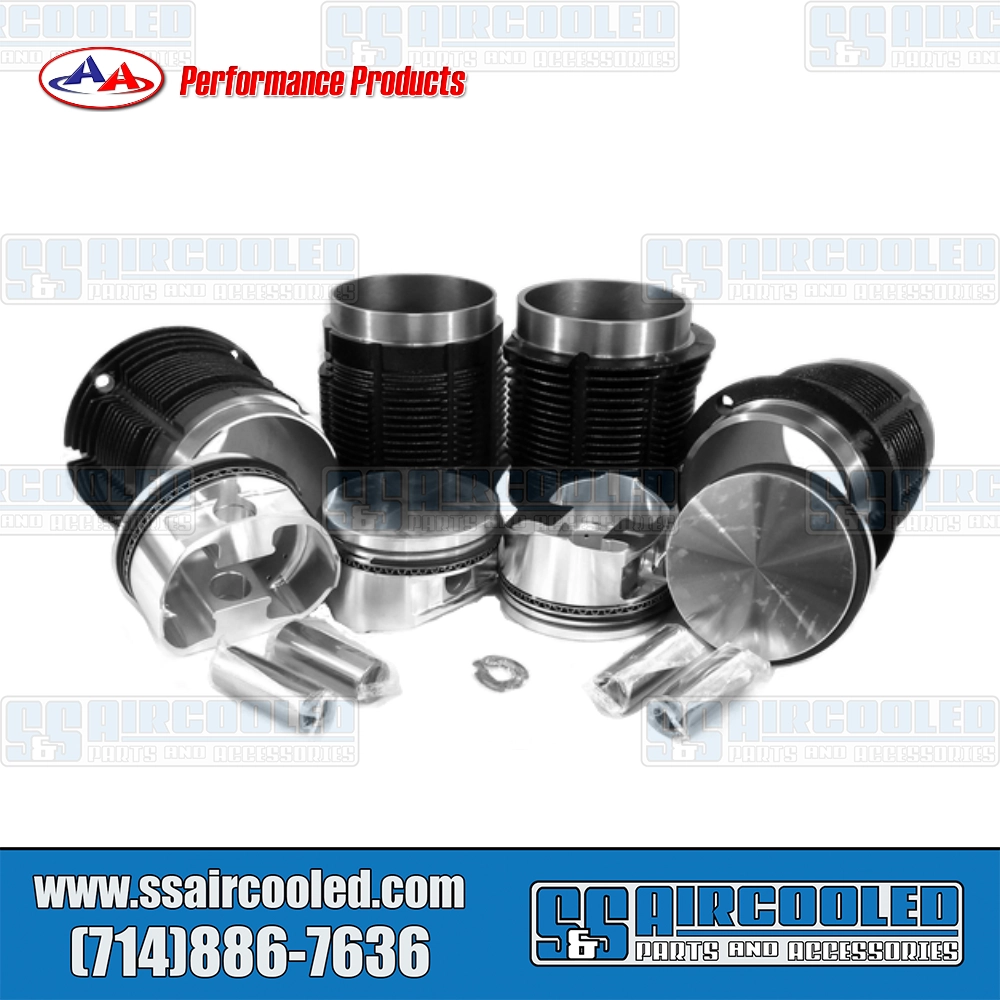

Includes:
(4) AA Cast Iron 101.6mm Cylinders
(4) JE Forged 2618 Aluminum Pistons
(1) Set of Piston Rings
(4) Wrist Pins
(1) Set of Wrist Pin Clips

Disclaimer: These are not an off the shelf part that can be bolted up to your motor. Case & Head Machine Work required along with engine building experience.
