AA Performance Products VW Piston & Cylinder Set, 80 x 64mm, 36hp Big Bore Kit, Cast, VW8000T36
AA Performance Products VW Piston & Cylinder Set, 80 x 64mm, 36hp Big Bore Kit, Cast
AA Performance Products offers a high-quality piston and cylinder set, also known as pistons and liners, designed specifically for the Volkswagen Type-1 engine. This set features hypereutectic pistons paired with cast iron cylinders (or liners) that provide exceptional performance. The hypereutectic cast pistons are stronger than common cast aluminum pistons, making them suitable for stock replacement and certain performance engine combinations. However, it is important to note that these hypereutectic pistons are not recommended for high horsepower naturally aspirated, nitrous, supercharged, or turbo applications.
Installation Note: This part requires machine work to be performed to the engine case and cylinder heads before installation.
Specifications:
Piston Style: Flat Top
Material: Cast Hypereutectic
Bore: 80mm
Stroke: 64mm
Compression: 38.05mm
Wrist Pin Dia: 20mm
Cylinder Head Bore: 90mm
Engine Case Bore: 90mm

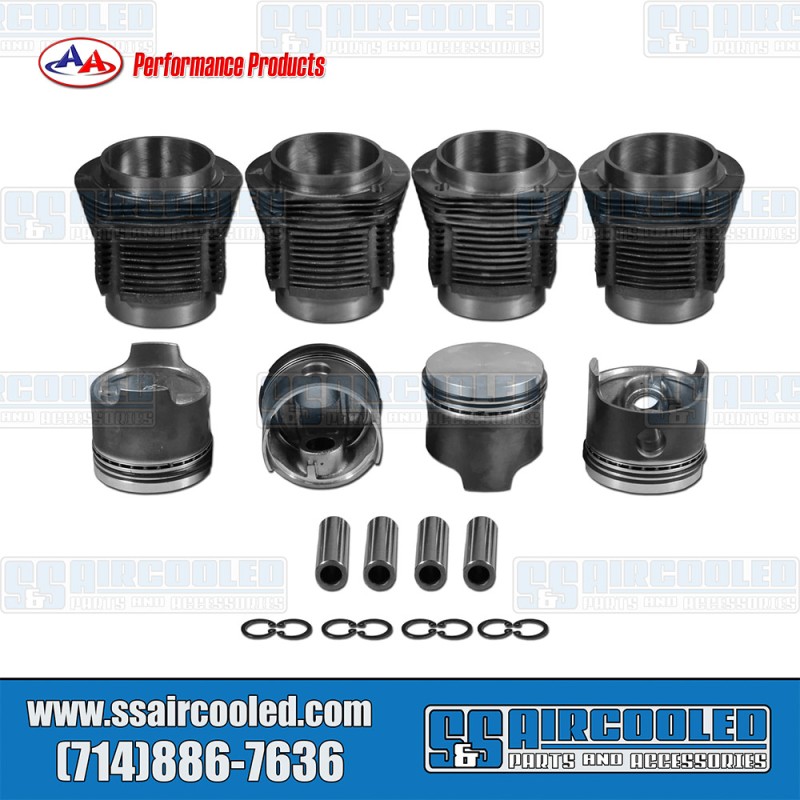

Piston & Cylinder Set Includes:
- (4) - Cast Iron Cylinders/Liners
- (4) - Cast Hypereutectic Pistons
- (4) - Piston Ring Sets
- (4) - Wrist Pins
- (8) - Wrist Pin Clips
AA Performance Products Piston & Cylinder Set, 80 x 64mm, 36hp Big Bore Kit, Cast, Sold as Set
Application Note: This is considered a universal part and can fit many different applications based on modifications to the vehicle. Please verify your application before purchase to ensure this part is correct for your project.
| Piston & Cylinder Specifications | |
| Piston Bore | 80mm |
| Piston Stroke | 64mm |
| Piston Pin Dia. | 20mm |
| Piston Material | Hypereutectic Aluminum, Flat Top |
| Cylinder Material | Cast Iron |
Tags: Piston & Cylinder Set, AA Performance Products, Stock Replacement VW Parts, Performance Upgrade VW Parts, VW Bug, VW Karmann Ghia, VW Bus
