AA Performance Products VW Piston & Cylinder Set, 92 x 82mm, Forged, VW9200T1SF

AA Performance Products VW Piston & Cylinder Set, 92 x 82mm, Forged

AA Performance Products presents a premium piston and cylinder set, also known as pistons and liners, meticulously engineered for the Volkswagen Type-1 engine. This exceptional set showcases forged pistons meticulously crafted from 2618 aluminum, a high-strength alloy renowned for its remarkable performance attributes. The forged pistons, designed with a 0 offset and additional material to accommodate valve pockets, deliver unparalleled strength and durability in comparison to cast aluminum pistons. They are particularly well-suited for a wide range of performance engine combinations.

Product Note: Pistons come in two different stroke measurements often referred to as "A" Pistons or (94 x 69mm) and "B" Pistons or (94 x 82mm). Crankshaft strokes measuring 69, 74 and 76mm generally use the "A" pistons while crankshaft strokes measuring 78, 80, 82, 84 and 86mm and larger generally use the "B" pistons.

Installation Note: This part requires machine work to be performed to the engine case and cylinder heads before installation.

Piston Style: Flat Top
Material: Forged 2618 Aluminum
Bore: 92mm
Stroke: 82mm
Compression: 35mm
Wrist Pin Dia: 22mm
Cylinder Head Bore: 98mm
Engine Case Bore: 96mm

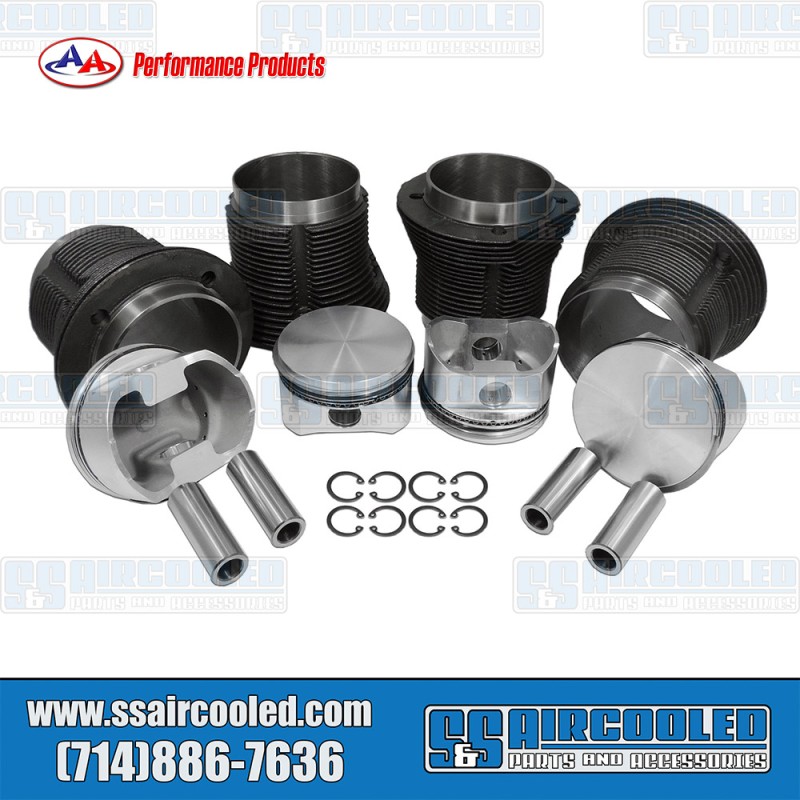

Piston & Cylinder Set Includes:

• (4) - Cast Iron Cylinders/Liners
• (4) - Forged 2618 Aluminum Pistons
• (4) - Piston Ring Sets
• (4) - Wrist Pins
• (8) - Wrist Pin Clips

Application Note: This is considered a universal part and can fit many different applications based on modifications to the vehicle. Application information is just for reference and not applicable to a stock vehicle configuration. Please verify your application before purchase to ensure this part is correct for your project.

AA Performance Products Piston & Cylinder Set, 92 x 82mm, Forged, Sold as Set
